Vertical Laminar Airflow
Home – Vertical Airflow
Laminar Air Flow Manufacturers in Chennai – Vertical Laminar Air Flow
Vertical laminar airflow (VLF) cabinets are a form of cleanroom cabinet in which filtered air is blown down from the top of the cabinet, providing a vertical flow of air over the work surface. This helps to keep the work environment clean and is suitable for a wide range of applications. Such as Laboratory work, Medical procedures and manufacturing.
Our vertical airflow systems are precisely engineered to provide effective and constant air distribution. These systems are designed to a variety of applications, ranging from industrial operations to commercial areas, and provide accurate temperature and humidity control.
Enquire for more details : [email protected]

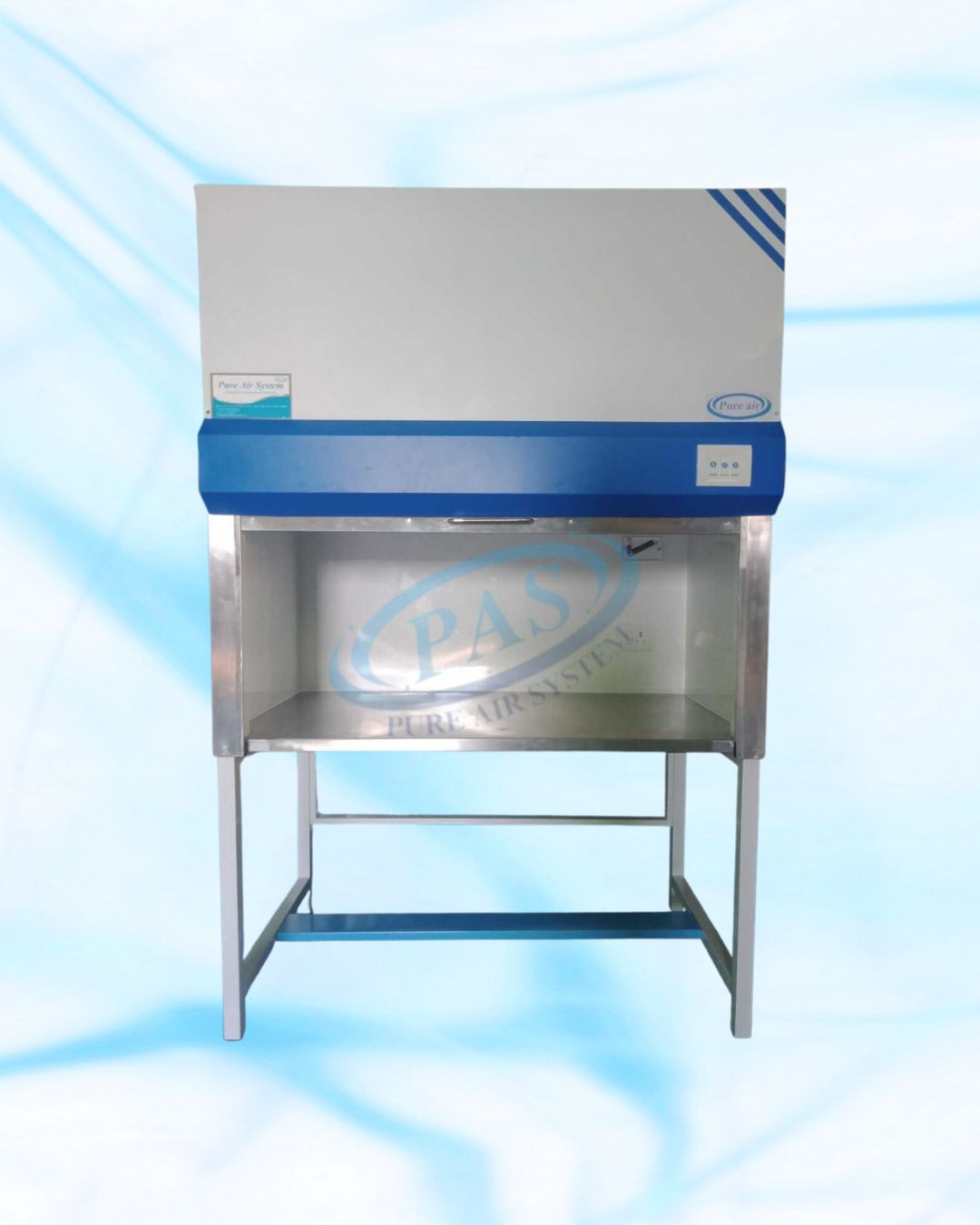

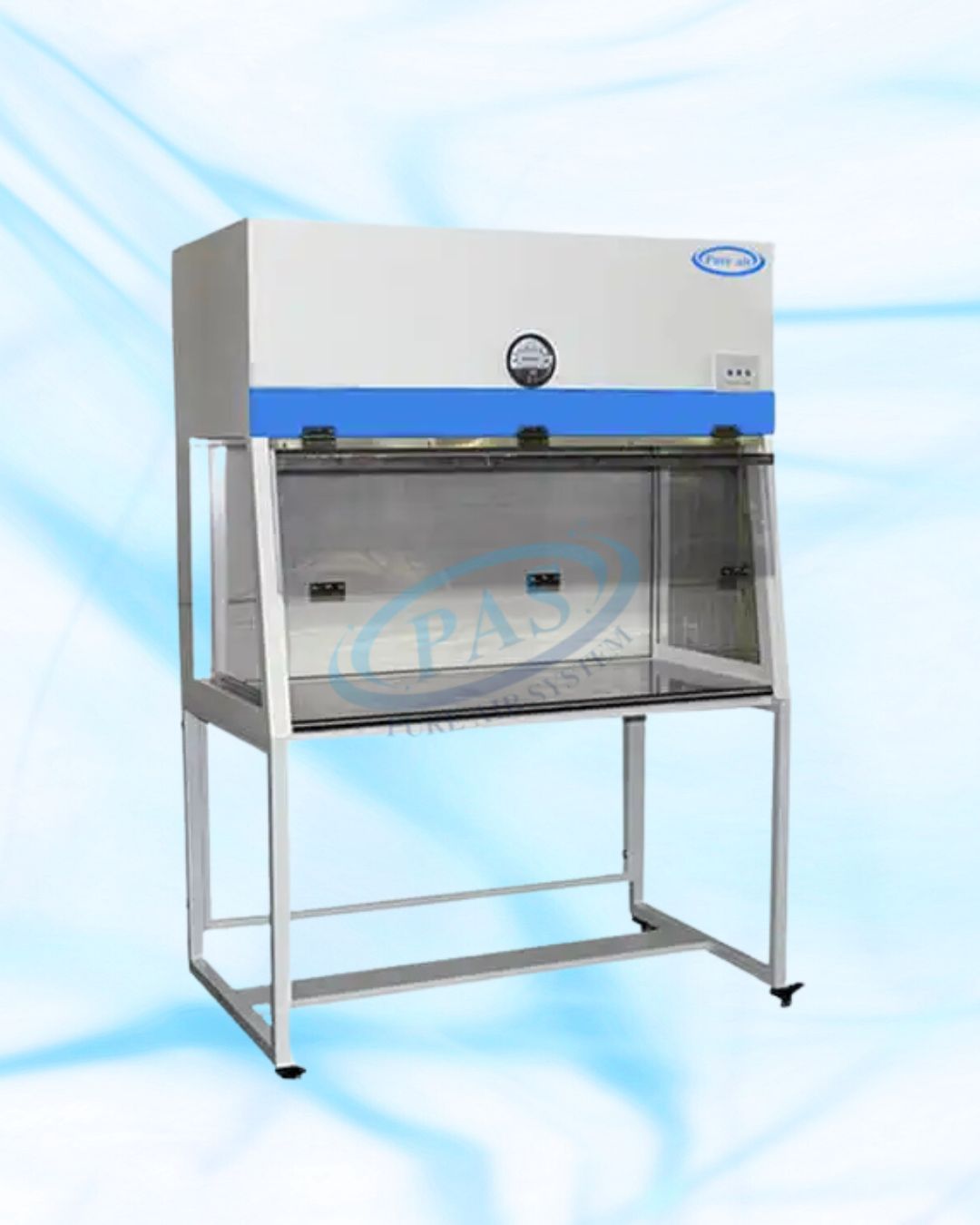

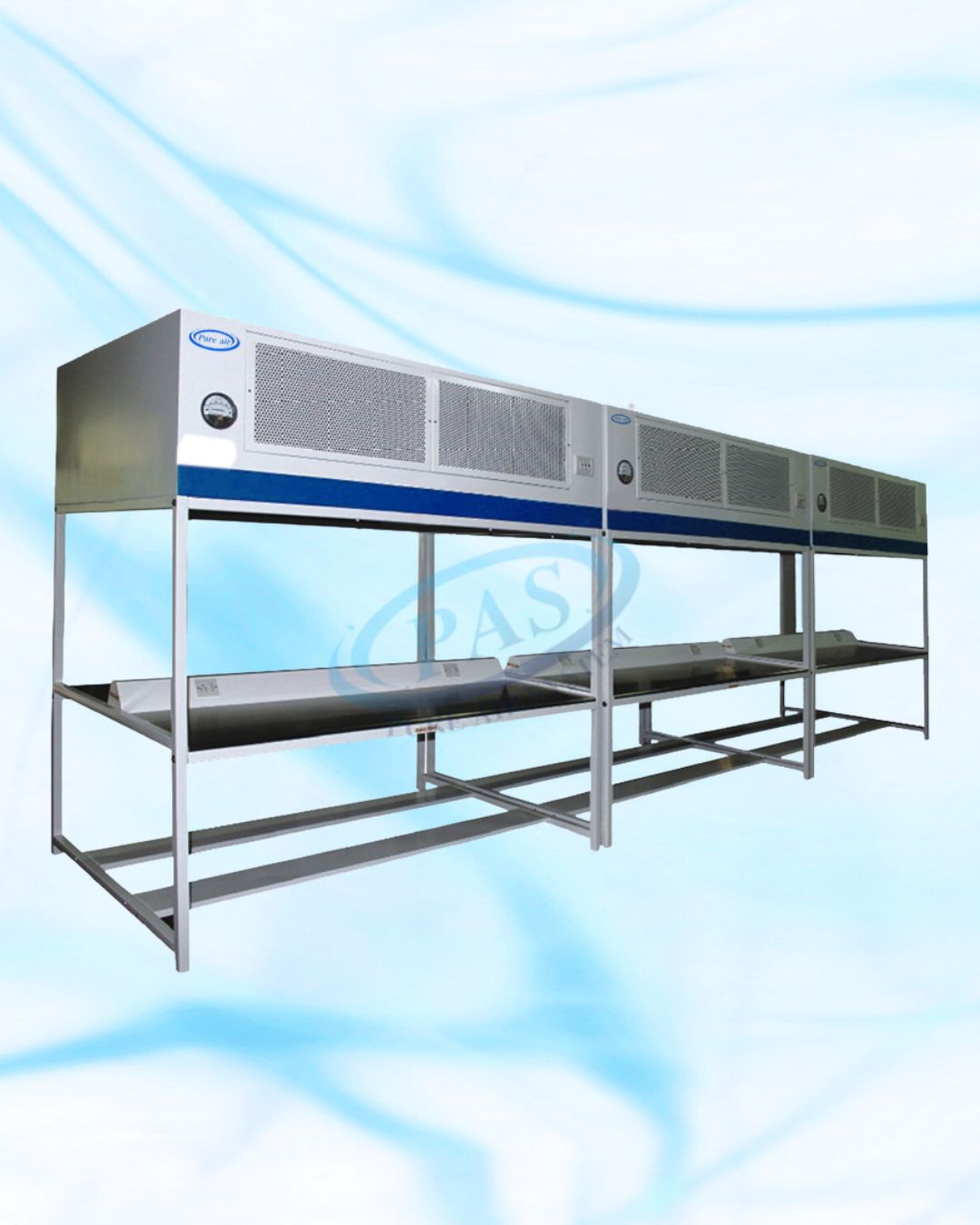

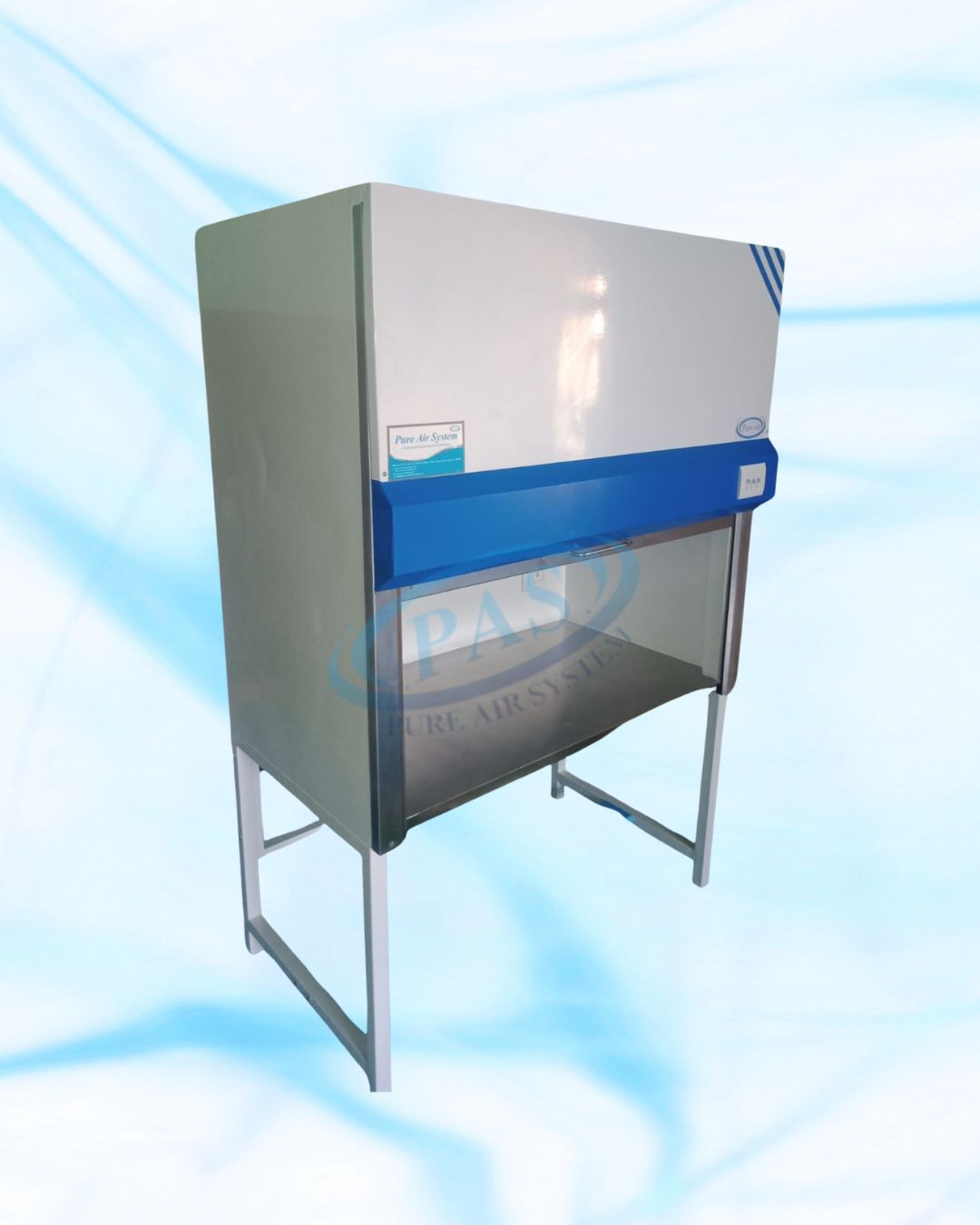

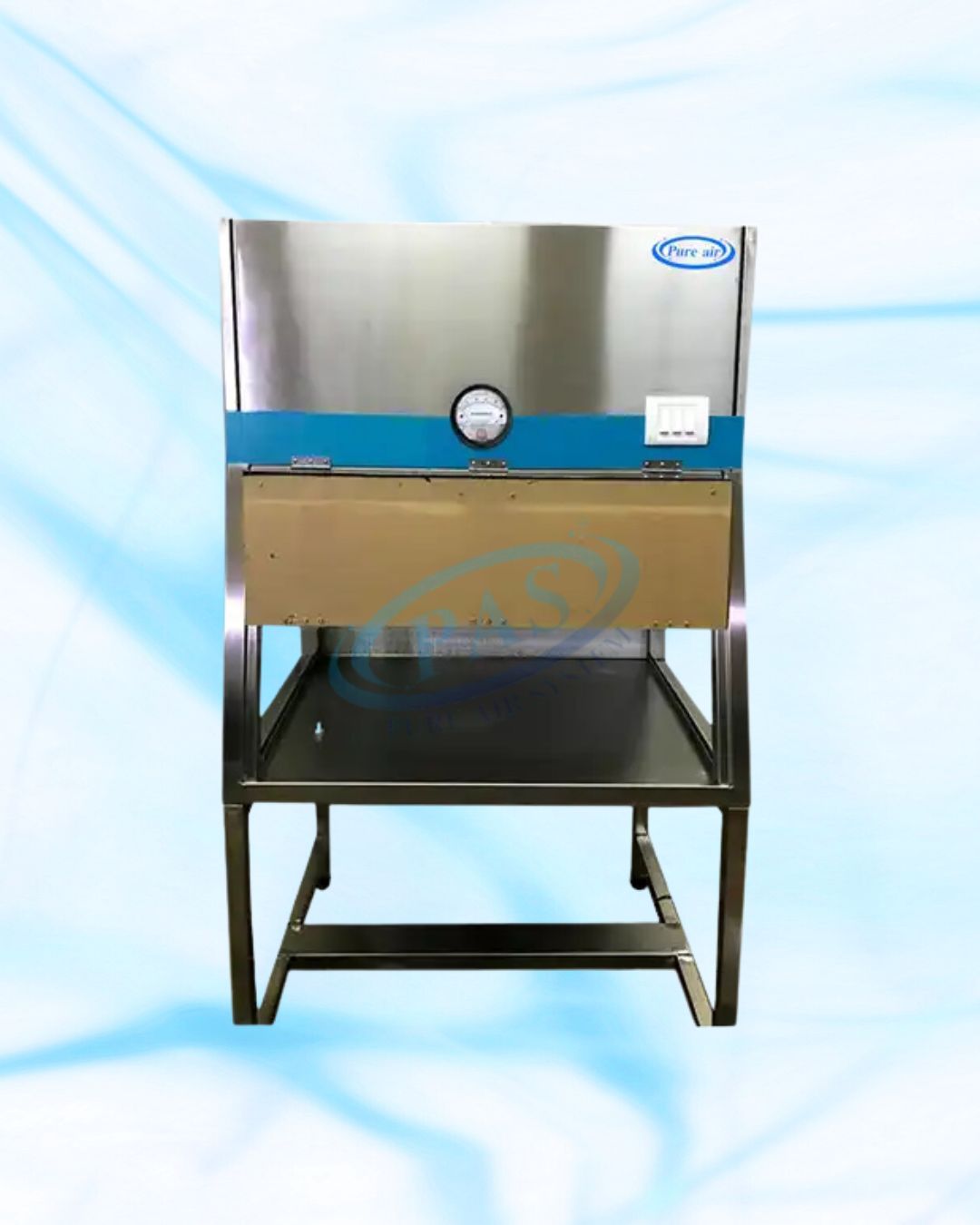

| Product | “Pureair” Vertical laminar Airflow – Stand Mounted Version |
| Dimensions | As per drawings enclosed. |
| MOC | Galvanized Iron with PU coated / Stainless Steel – Satin Finish / Wooden laminated |
| Pre Filter | “Pureair” Make Pre Filter with Micro Glass Fibre Media of EU – 4 Rating. |
| Supply HEPA Filter | Imported Minipleat HEPA Filter efficiency 99.97% Down to 0.3µ H-13 Rating. |
| Motor Blower Assembly | Induction Motor with Centrifugal Blower Statically and Dynamically balanced with Suitable Rating and Size. |
| Mounting | Unique Spring Suspension Systems to take care of Vibration and Noise. |
| Working Table | S.S. 304 with Due Reinforcement for Better Performance and Stability. |
| Side Panel Accessory No. | Clear Glass Side Panels / Clear Acrylic panel / UV Protected Polycarbonate panel |
| Pressure Gauge | DWYER, USA Minihelix Differential Pressure Gauge / “Pureair” Inclined manometer. |
| Lights | Fluorescent Tube with Milky White Diffuser. |
| Other Electricals | 3 Pin Socket, 15 AMP – 1 No. – On / Off Switches with Indicator. |
| Air Cleanliness | Class ISO – 5 (as per ISO – 14644-1). |
| Air Flow rate | 0.45 ± 0.05mps. or 90 FPM ± 10 FPM |
| Illumination Of Light | Minimum 800 Lux on work table |
| Noise Level | Less than 67 db on Scale ‘A’ When Ambient sound Level is not Greater than 57 db on Scale ‘A’ |
| Vibration Level | Minimum |
