Static Pass Box Manufacturers in Chennai
Do you require a high-quality pass box for your cleanroom, laboratory, or controlled environment? You are in the right place! We are the leading pass box manufacturers in Chennai, devoted to offering cutting-edge technology and flawless design. With years of expertise and a commitment to quality, we are your reliable partner for all of your pollution control requirements.

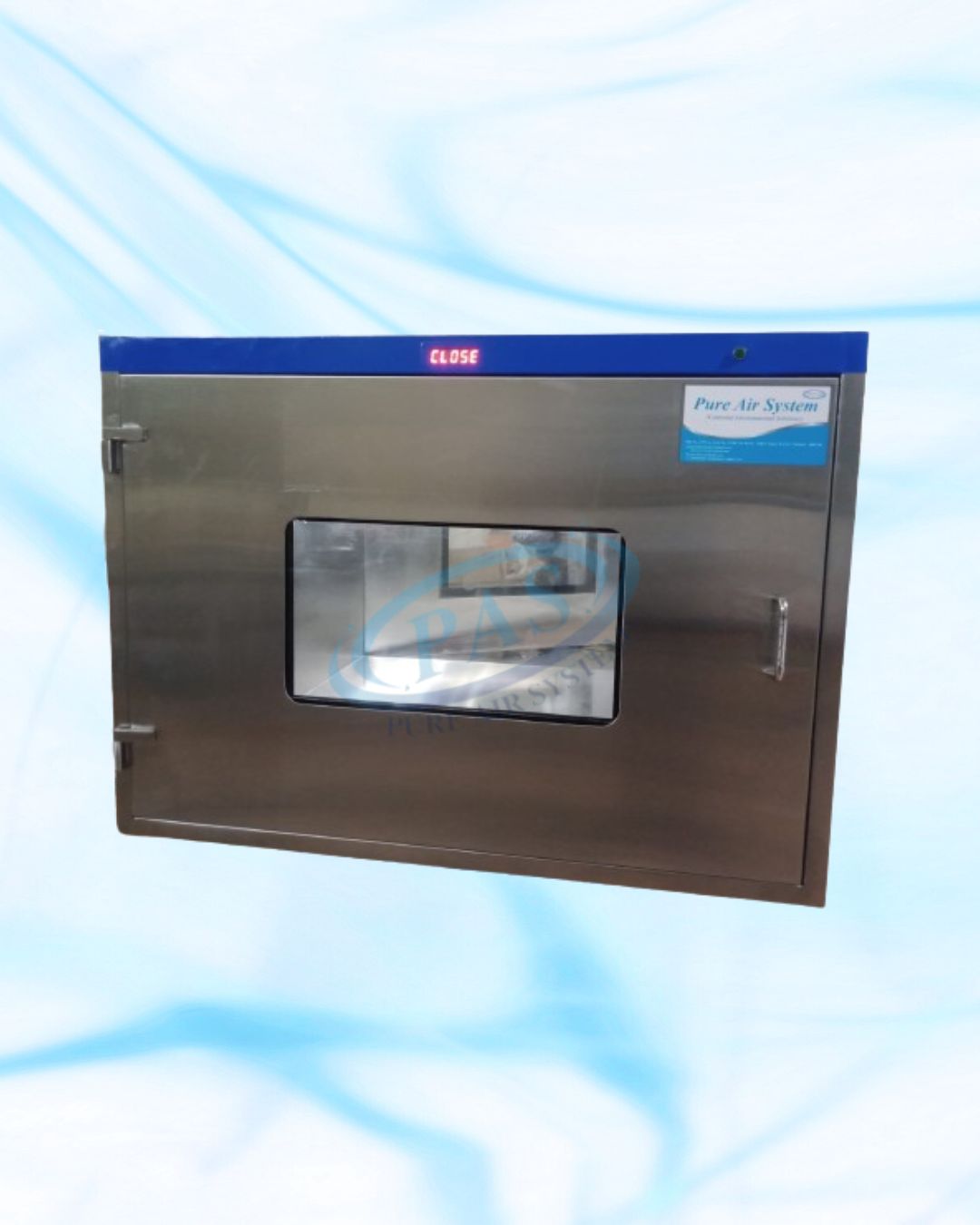

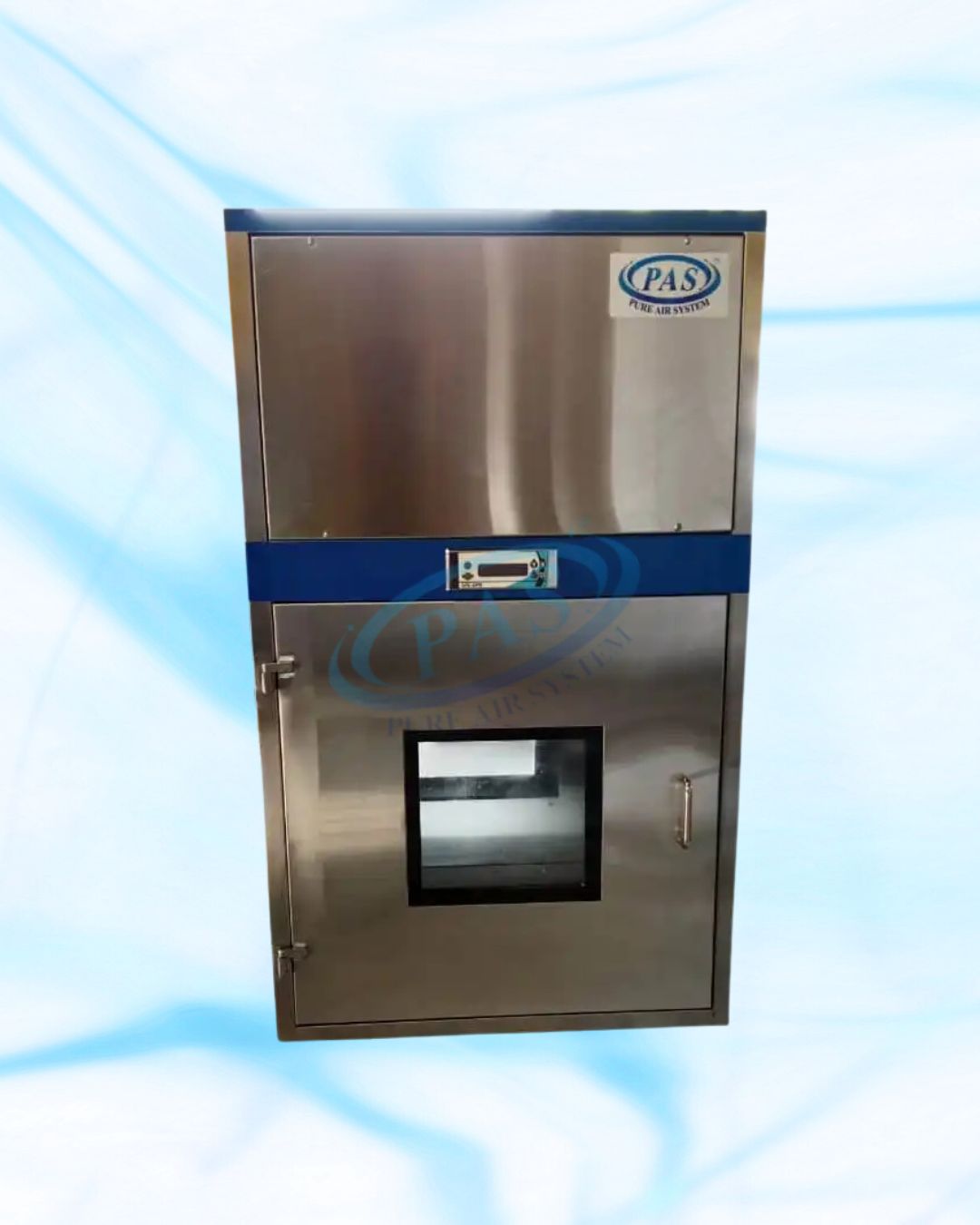

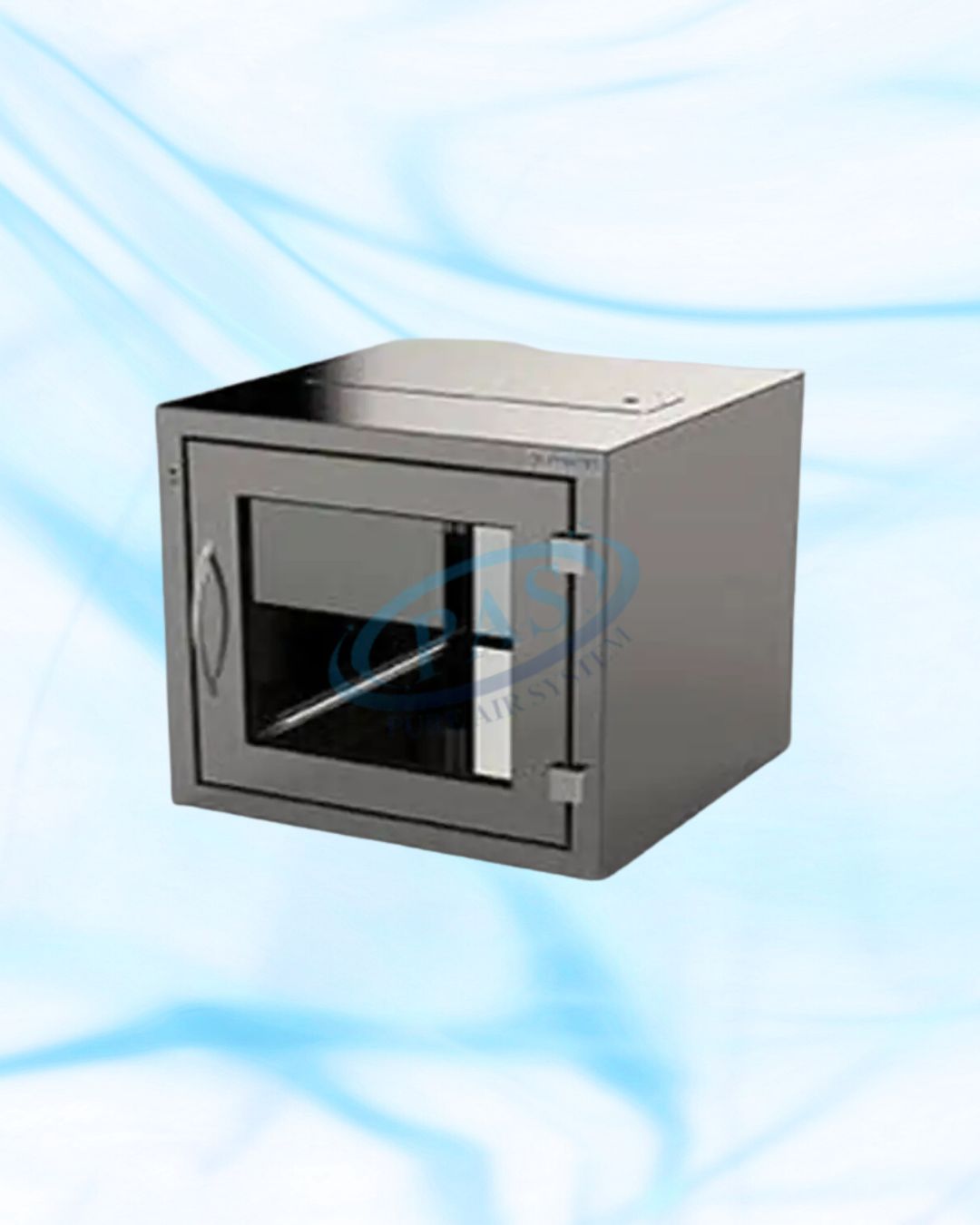

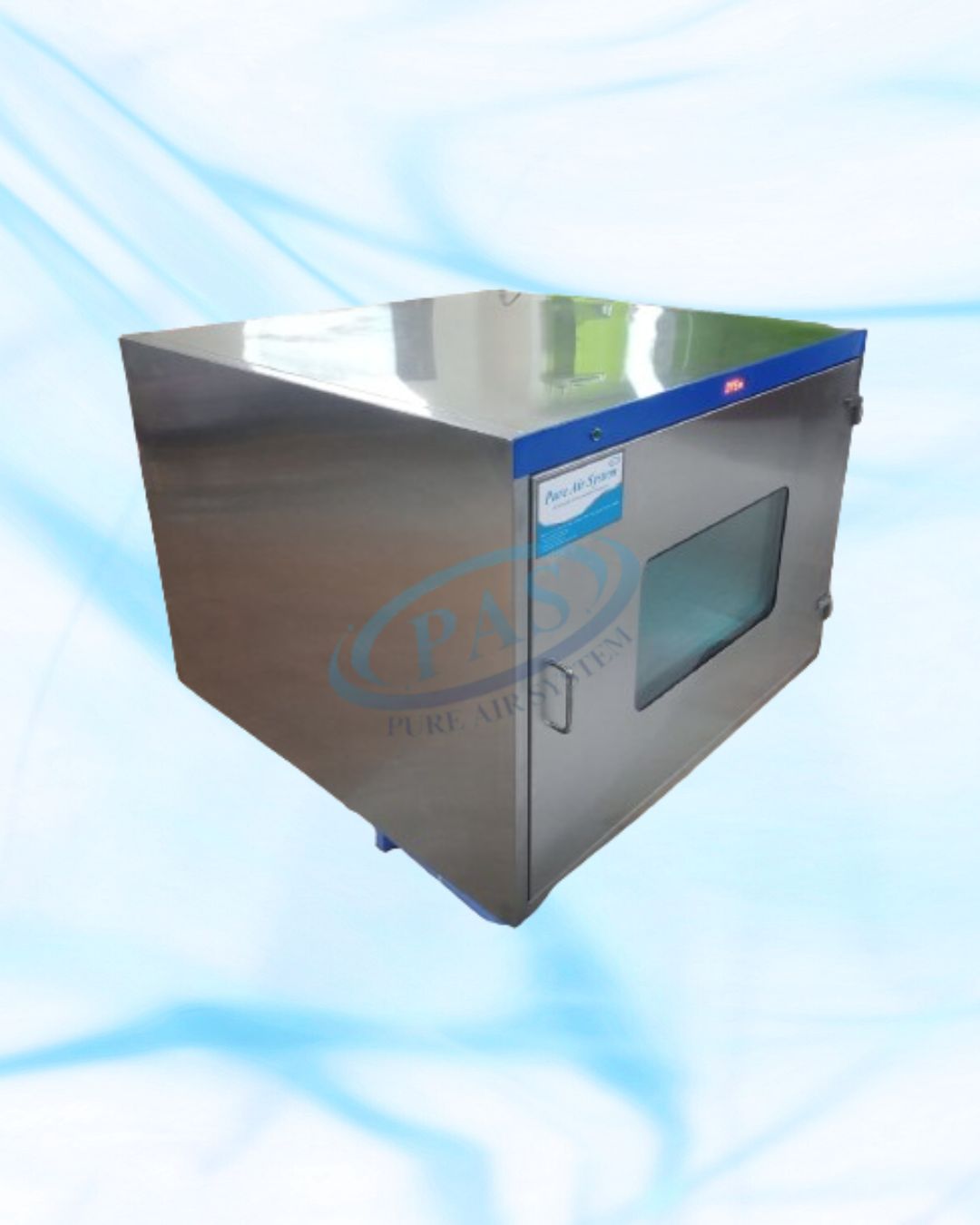

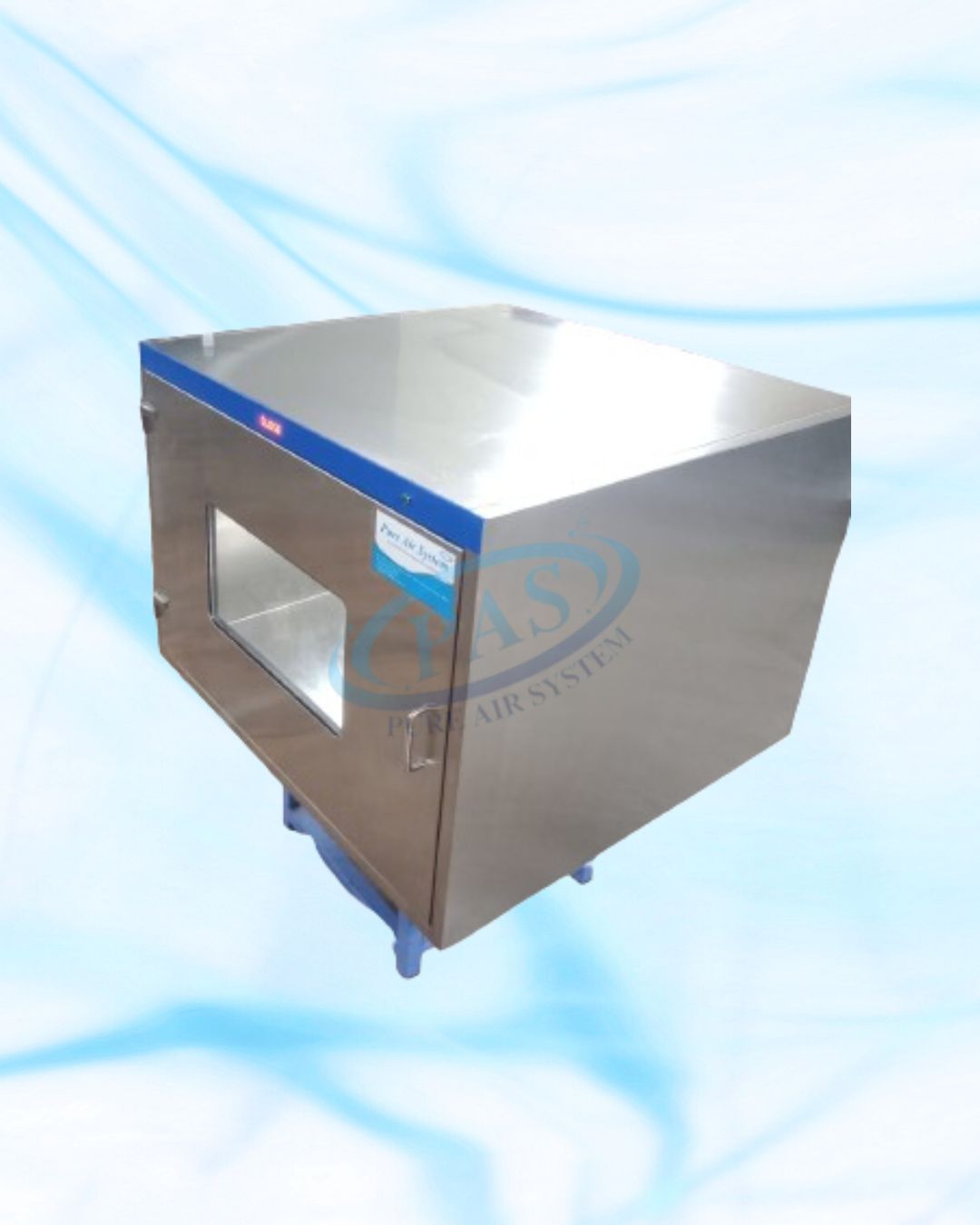

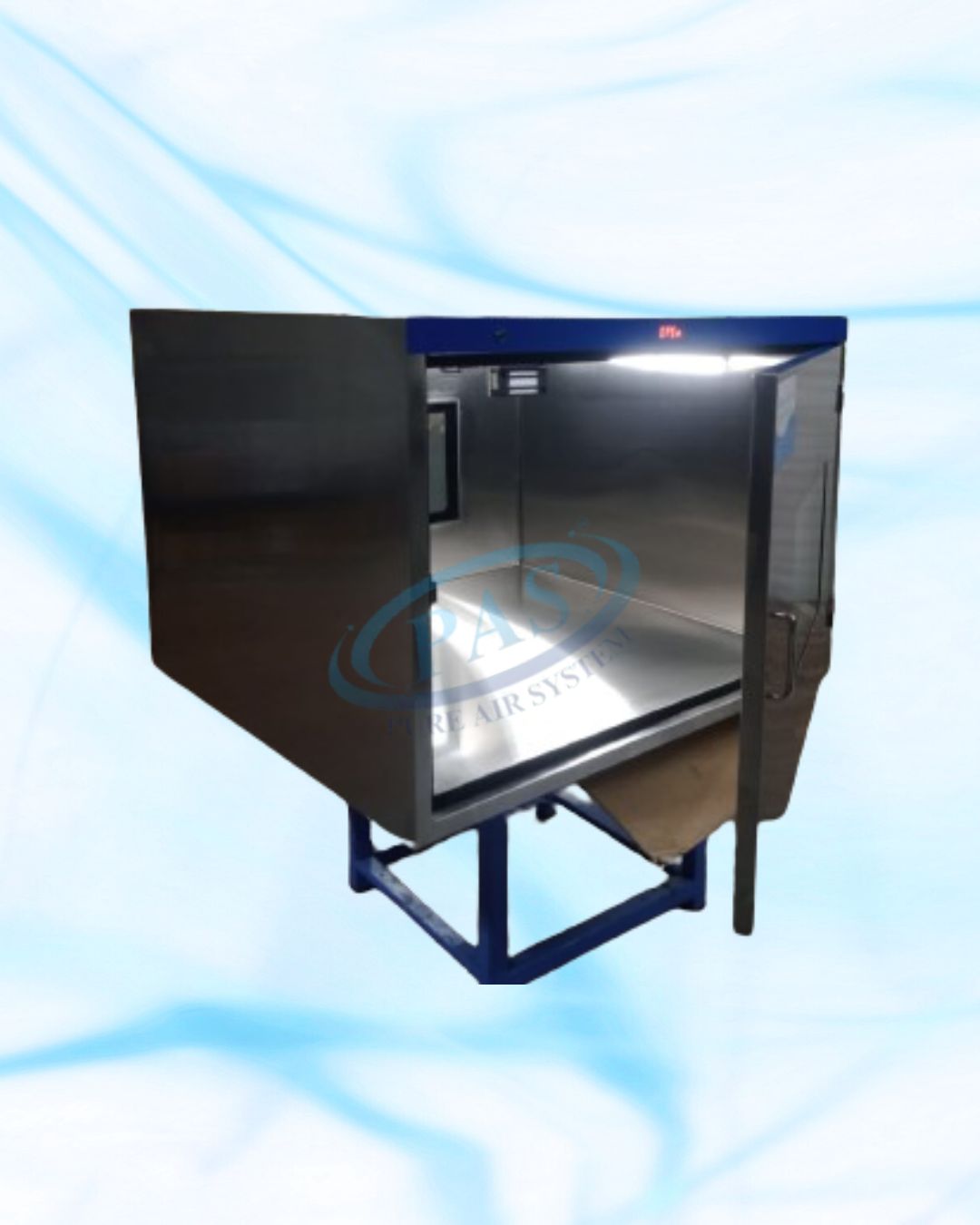

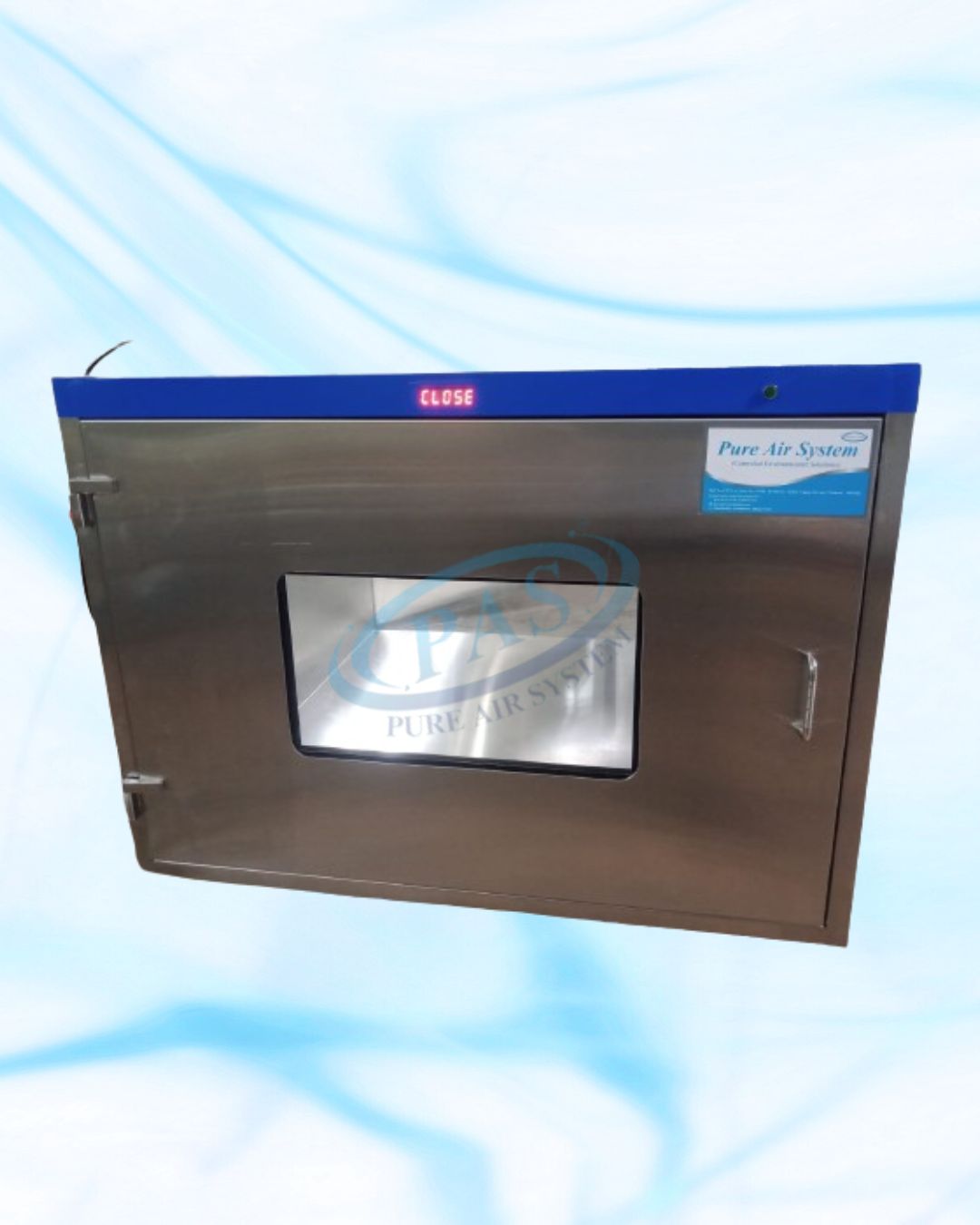

Pure Air India’s Static pass boxes are used to transport non-contaminated samples into a controlled environment. These pass boxes feature a basic design and are appropriate for situations where maintaining a regulated environment is critical.
Available in Mechanical Interlocking and Electrical Interlocking arrangements Standard size available: 2’ x 2’ x 2’.
Enquire for more details : [email protected]
| Product | “Pureair” Static Pass Box |
| MOC | Main Body – Galvanized Iron with PU coated / Stainless Steel – Satin Finish Working Area – Stainless Steel IS 304 Grade Satin Finish |
| Coving | Inner Side Bottom Corners will be Duly Pensile Coved. |
| UV Lamp | UV Intensity 254nm with Door Interlocking |
| Light Intensity | Minimum 900 lux inside the working area at ambient zero |
| Vibration Level | Minimum. |
| Noise level | Less than 65 db on A scale |
| Light Intensity | Minimum 900 lux inside the working area at ambient zero |
| Vibration Level | Minimum. |
| Doors | Double Skin Swing Door with Clear View Panel |
| Supply Filter | HEPA Filter having EU 13 rating with suitable size. |
| Efficiency | 99.99% down to 0.3 Microns. |
| Pre Filter | “Pureair” make, EU 4 rating with suitable size. |
| Efficiency | 90% down to 10 Microns. |
| Doors | Double Skin Swing Door with Clear View Panel |
| Door Interlocking | Electro Magnetic Interlocking Arrangement with Sensors |
| Accessories | UV Lamp Interlocking with Door Open & Close Audible/ Visual Alarm for False Door Interlocking On/Off switches for motor blower & CFL lights. (optional) SS Protective Grill for HEPA Filters (Optional) |
