Garment Storage Cabinets
Home – Garment Storage Cabinets
Garment Storage Cabinets

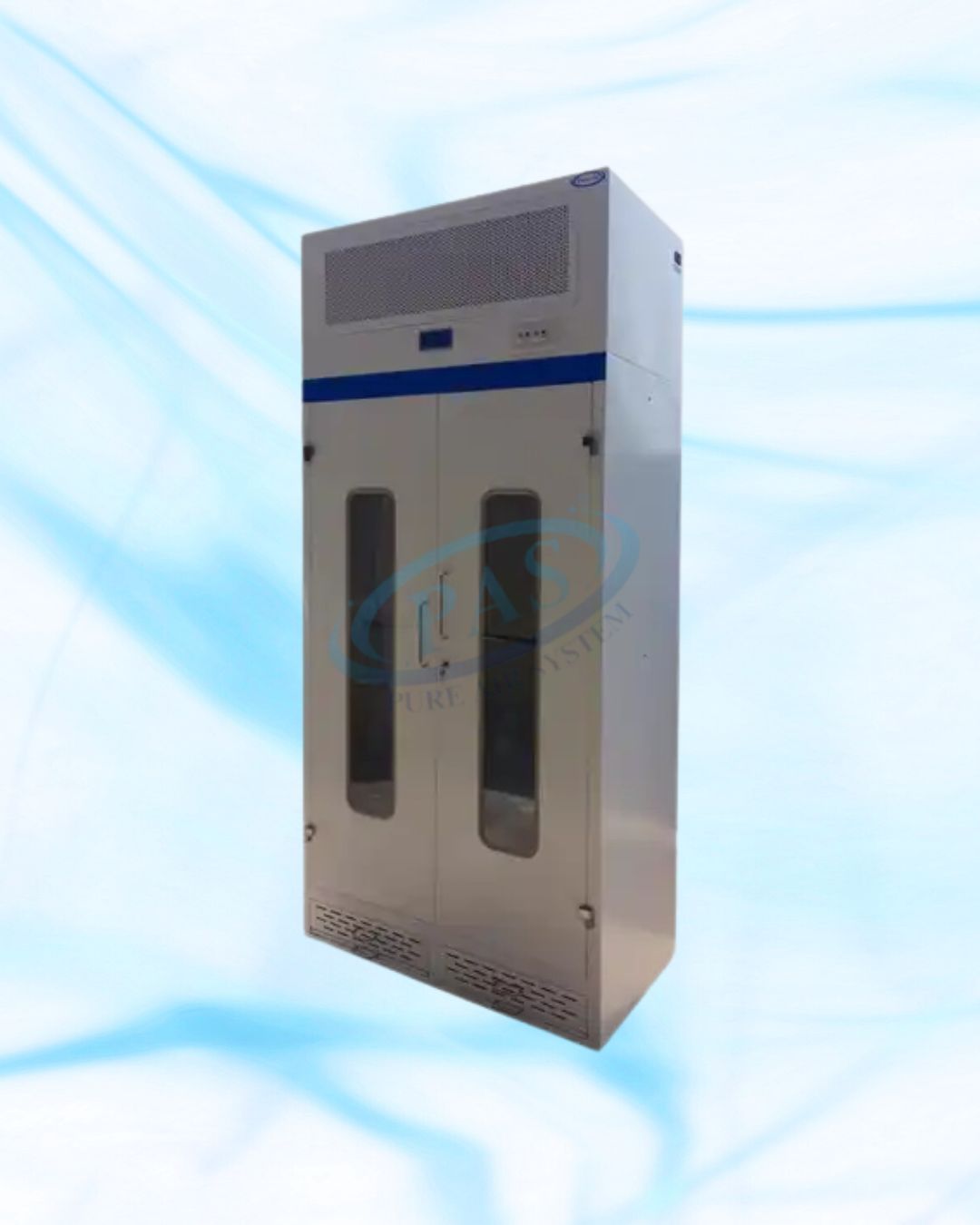

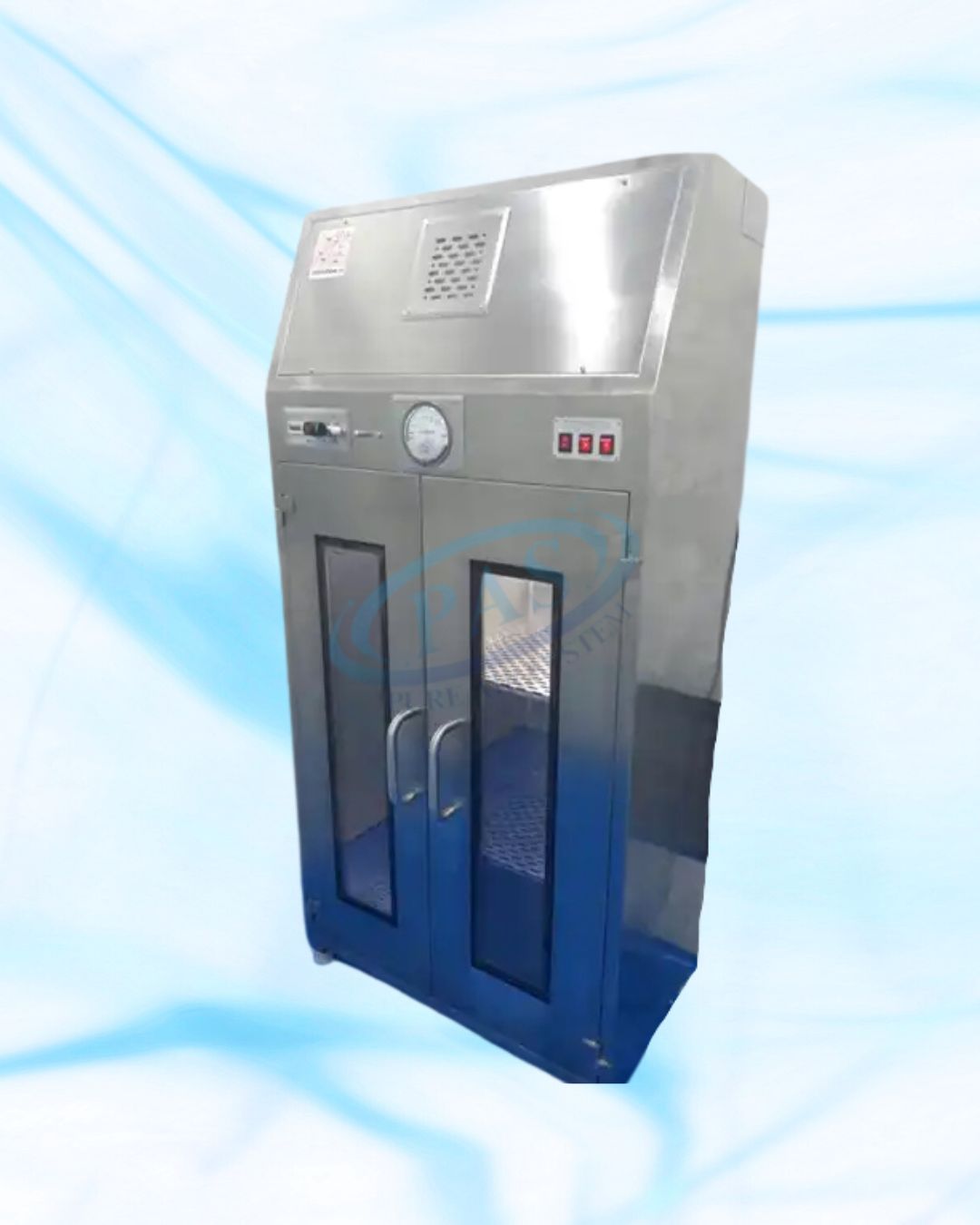

“Pureair” make Cleanroom Garment storage cabinet made for a controlled
environment chamber for optimal storage of clean room garments, tools, wipes, process equipment, and other materials
environment chamber for optimal storage of clean room garments, tools, wipes, process equipment, and other materials
Choose the configuration for your requirements
- Garment rack (holds up to 30 garments)
- Adjustable shelves
- Combination garment rack/shelves
Models available with HEPA filter/blower unit that removes 99.97% of all
contaminants 0.3 microns and larger and provide ISO Class 5 Cleanliness level inside the cabinet.
Optional: Activated carbon filtration and Infra-Red-Light Heating arrangement.
| Product | “Pureair” make Garments Storage Cabinet |
| Air balancing | 90% recirculation.10% exhaust |
| Cleanliness level | ISO class 5 as per ISO 14644-1 |
| Down Velocity | 0.45 ± 0.05mps. or 90 FPM ± 10 FPM |
| Noise level | 60 dB on A scale |
| Noise level | 60 dB on A scale |
| Light Intensity | Minimum 900 lux inside the working area at ambient zero |
| MOC Main Body | Galvanized Iron with PU coated/Stainless Steel – Satin Finish |
| Supply Filter | HEPA Filter having EU 13 rating with suitable size. |
| Efficiency | 99.99% down to 0.3 Microns. |
| Exhaust Filter | HEPA Filter having EU 13 rating with suitable size. |
| Efficiency | 99.99% down to 0.3 Microns. |
| Pre Filter | “Pureair” make, EU 4 rating with suitable size. |
| Efficiency | 90% down to 10 Microns. |
| Noise Level | Less than 70 dB ‘A’. |
| Vibration Level | Minimum |
| Magnehelic Differential Pressure Gauge | 01 No. (make: Dwyer, USA) with each unit (To measure differential pressure across the supply HEPA filter). |
| Motor Blower Assembly | Statically & Dynamically balanced with suitable rating and size. (Induction motor with centrifugal blower) A Mounting unique spring suspension system to take care of vibration and noise. |
| Standard Accessories | Hangi ng Roads for Hooks for GarmentsInfra Red Lamp with Thermostat for Heating process UV Lamp with ON/ OFF switch Activated Carbon Filter for Odor Removal (Optional) shoe Rack at Bottom (Optional) |
