Dynamic Pass Box Manufacturers in Chennai
Do you require a high-quality pass box for your cleanroom, laboratory, or controlled environment? You are in the right place! We are the leading pass box manufacturers in Chennai, devoted to offering cutting-edge technology and flawless design. With years of expertise and a commitment to quality, we are your reliable partner for all of your pollution control requirements.

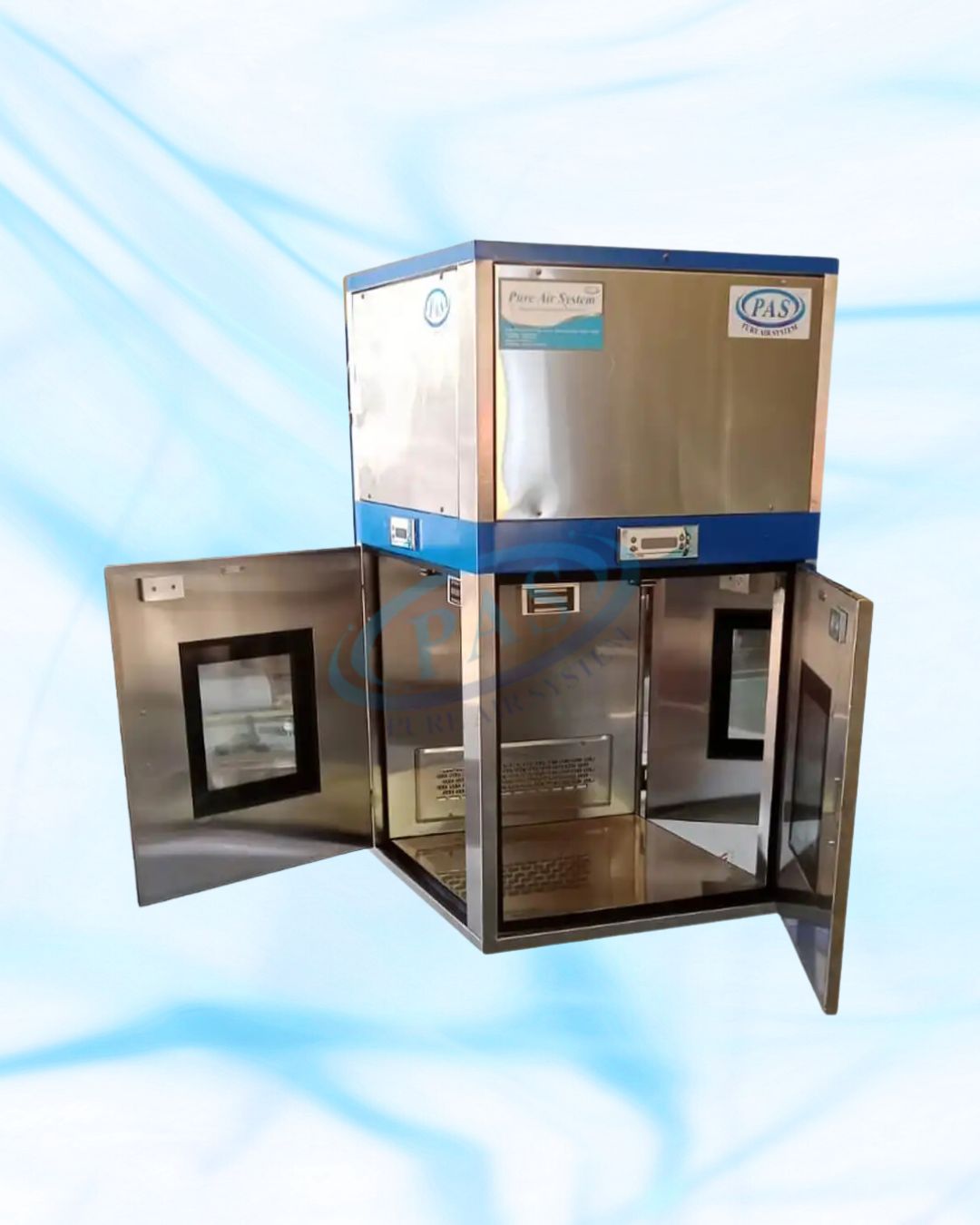

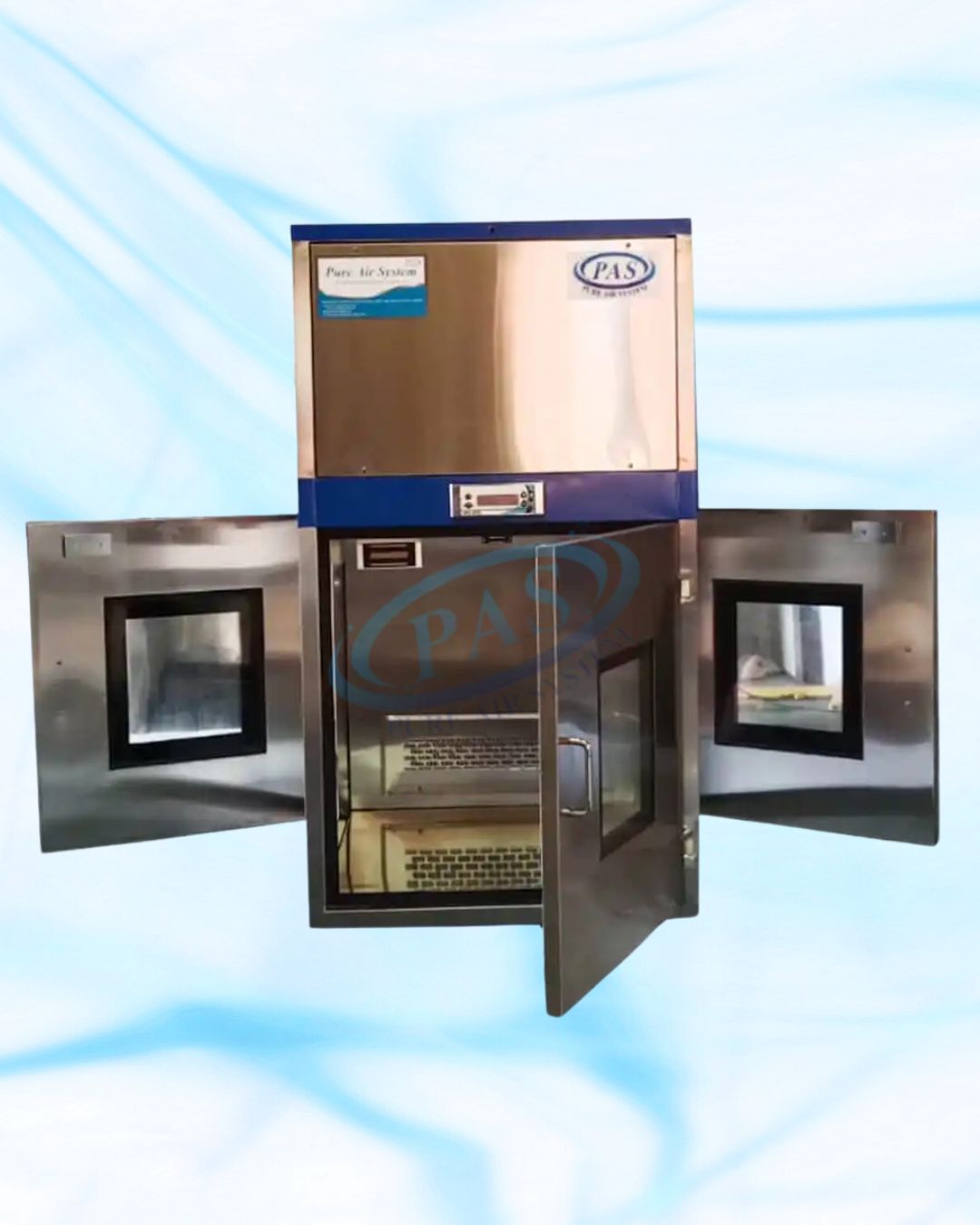

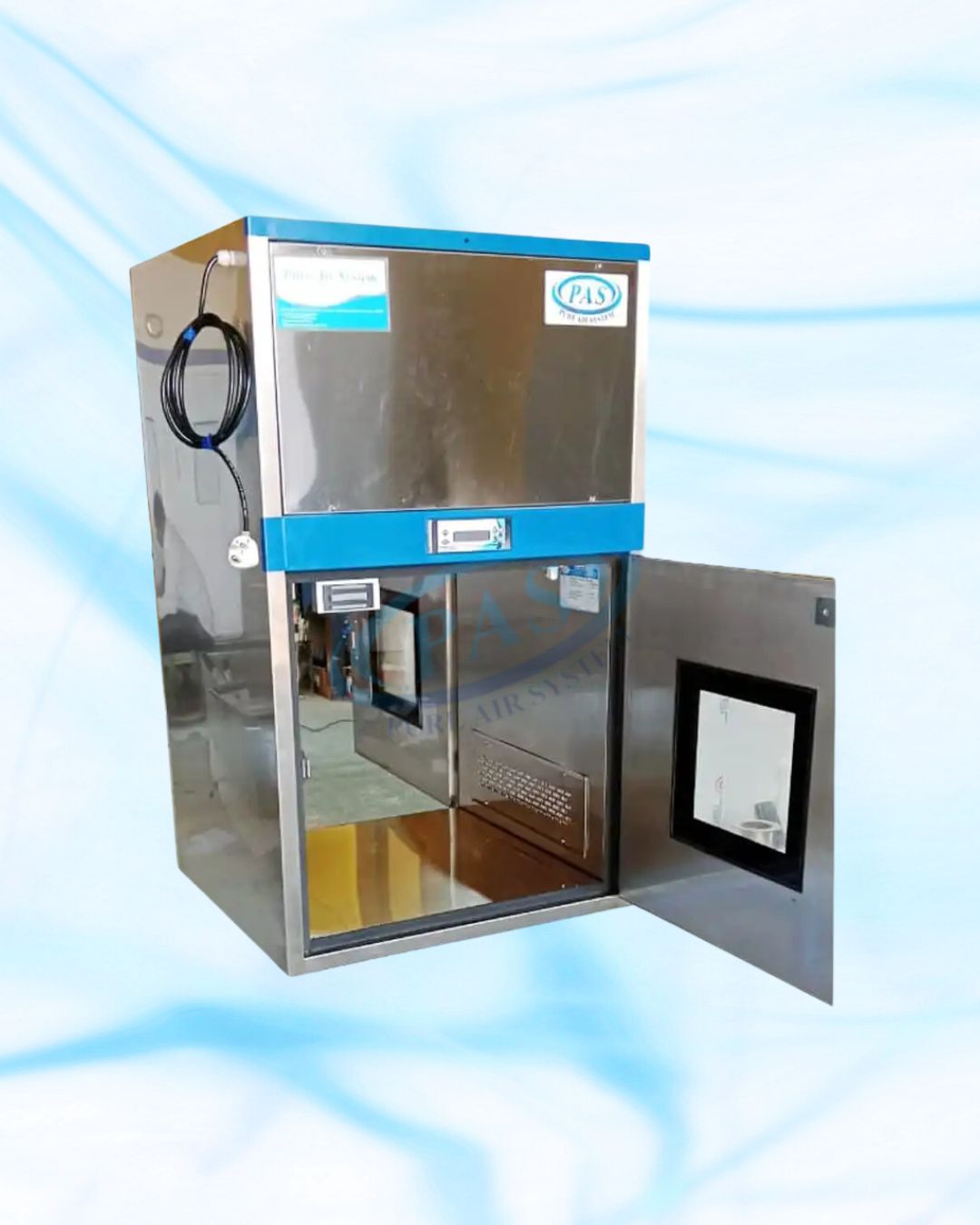

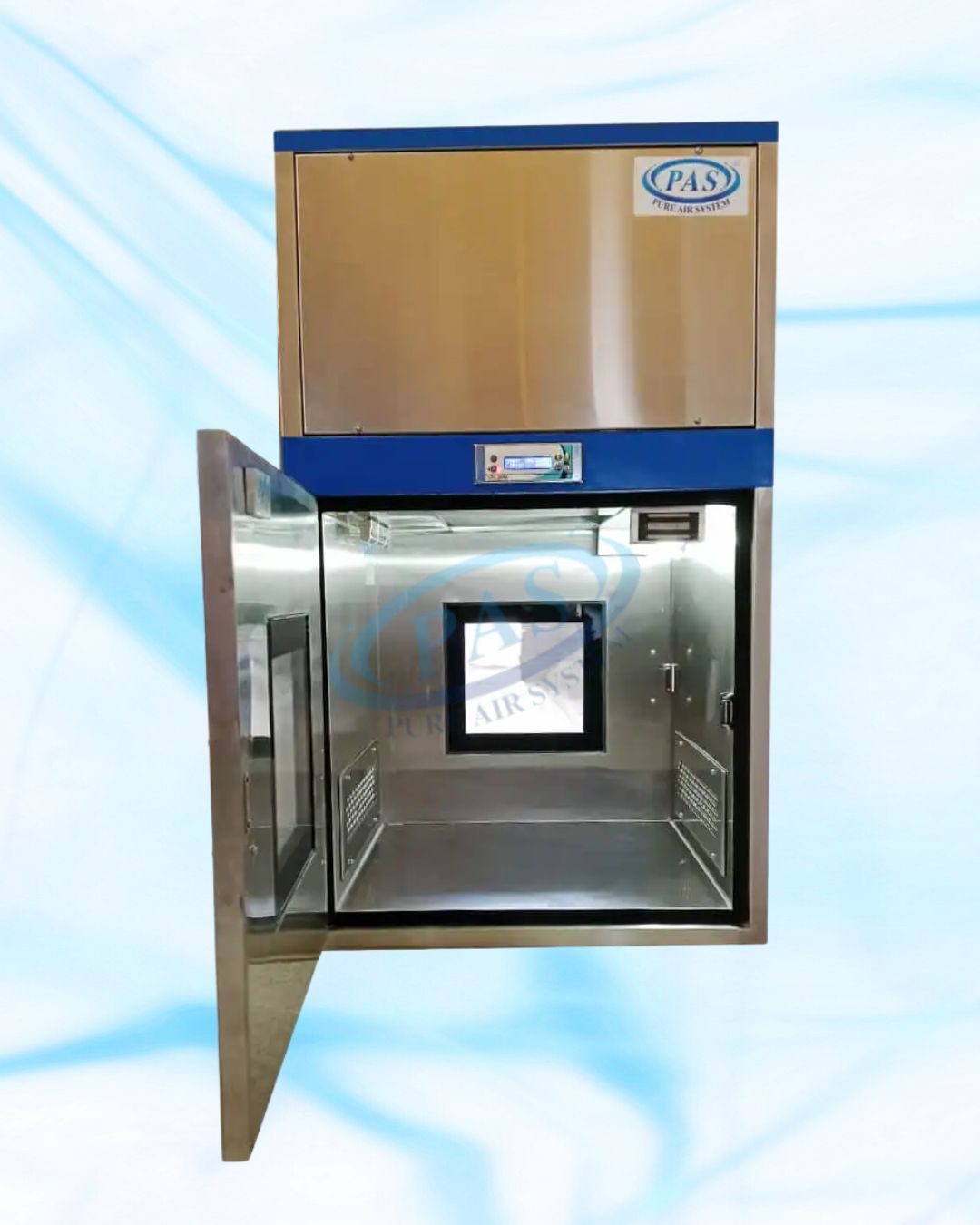

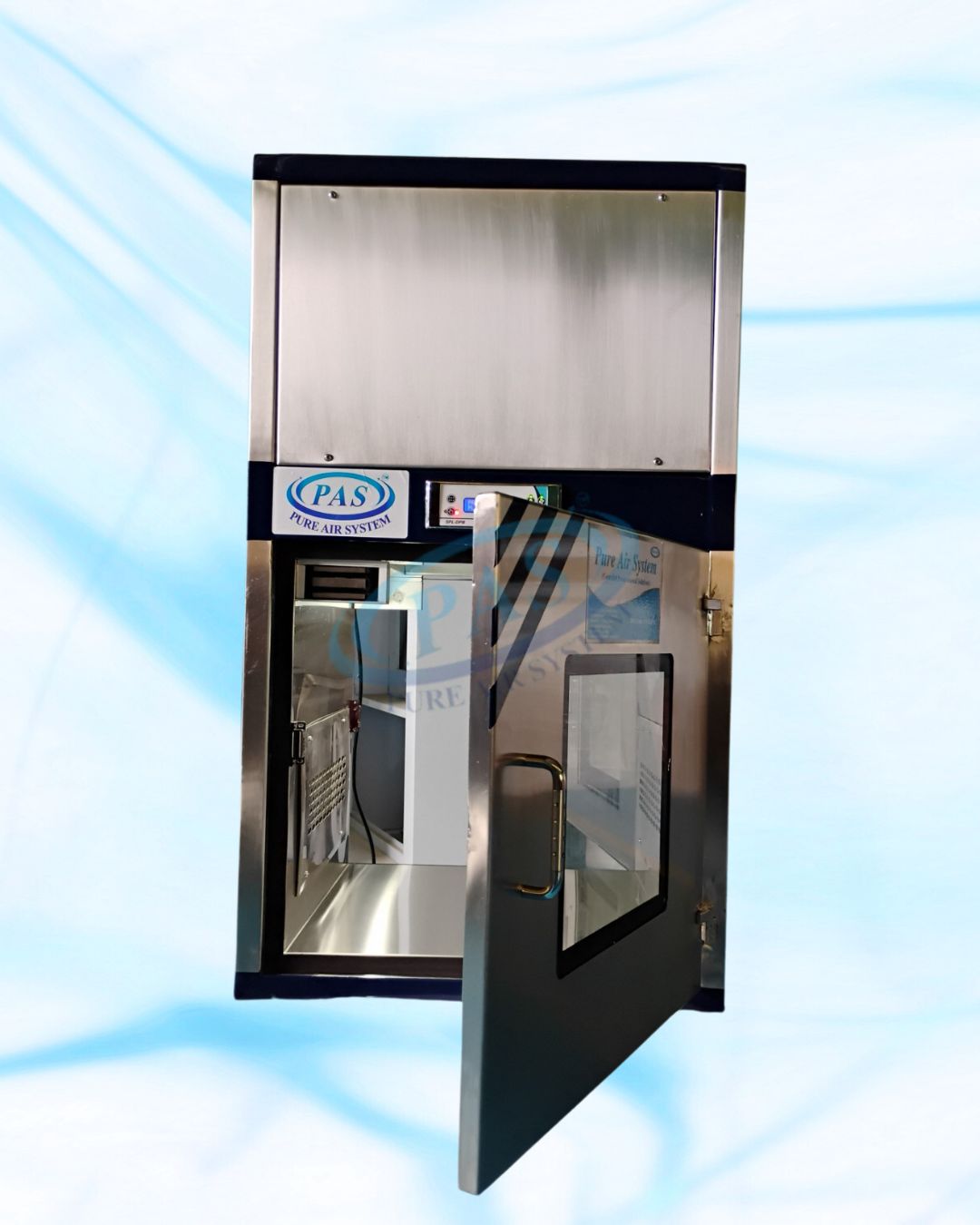

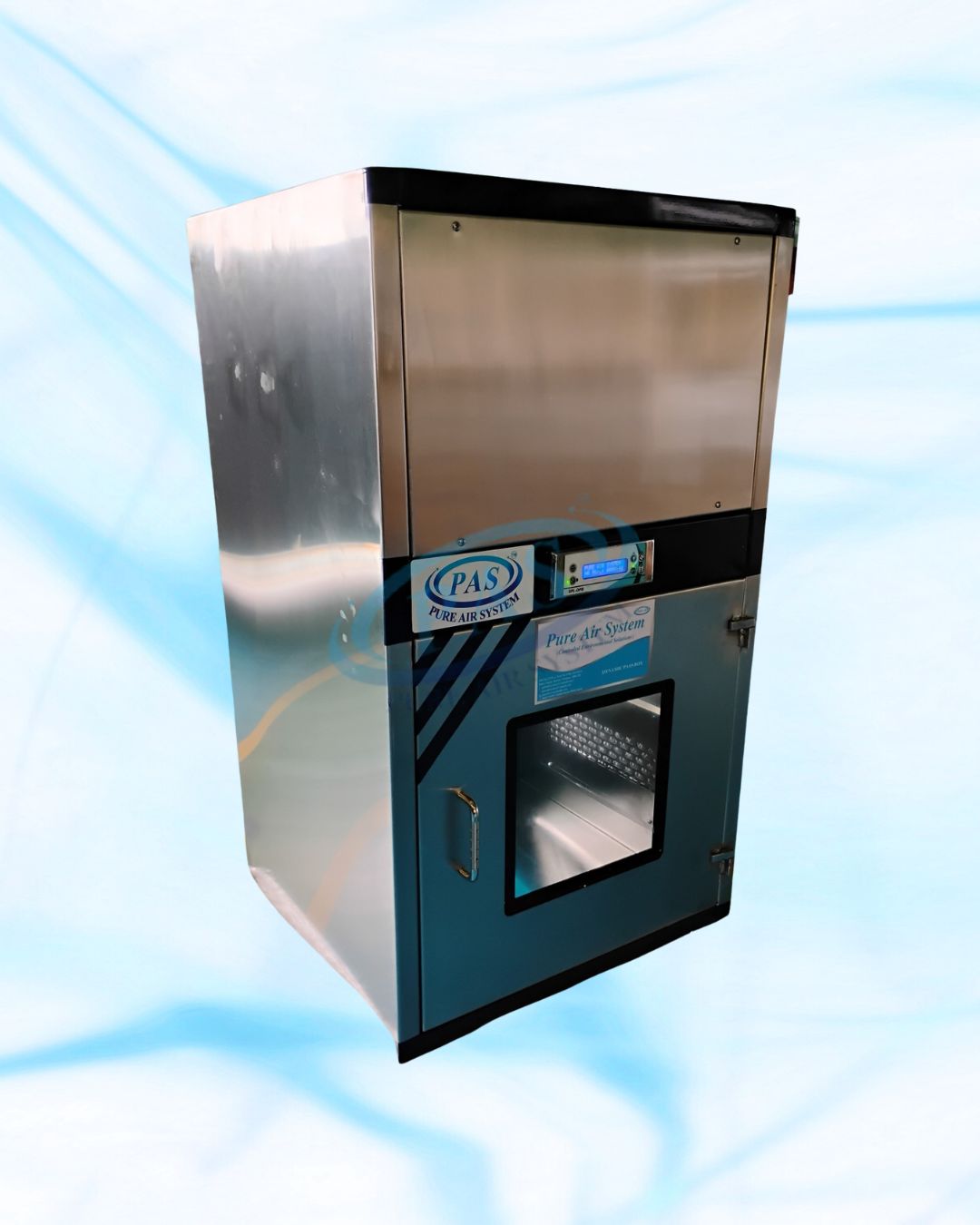

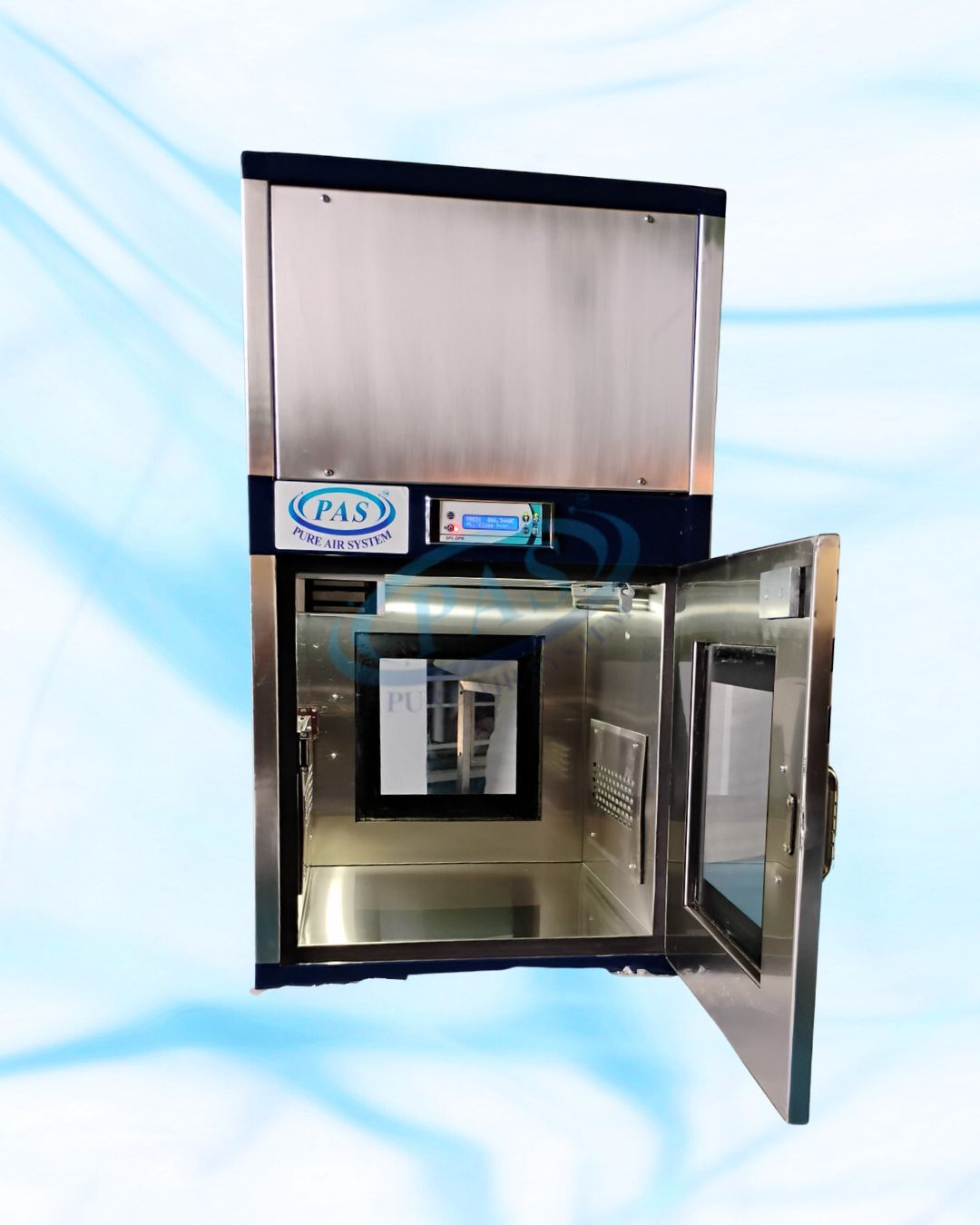

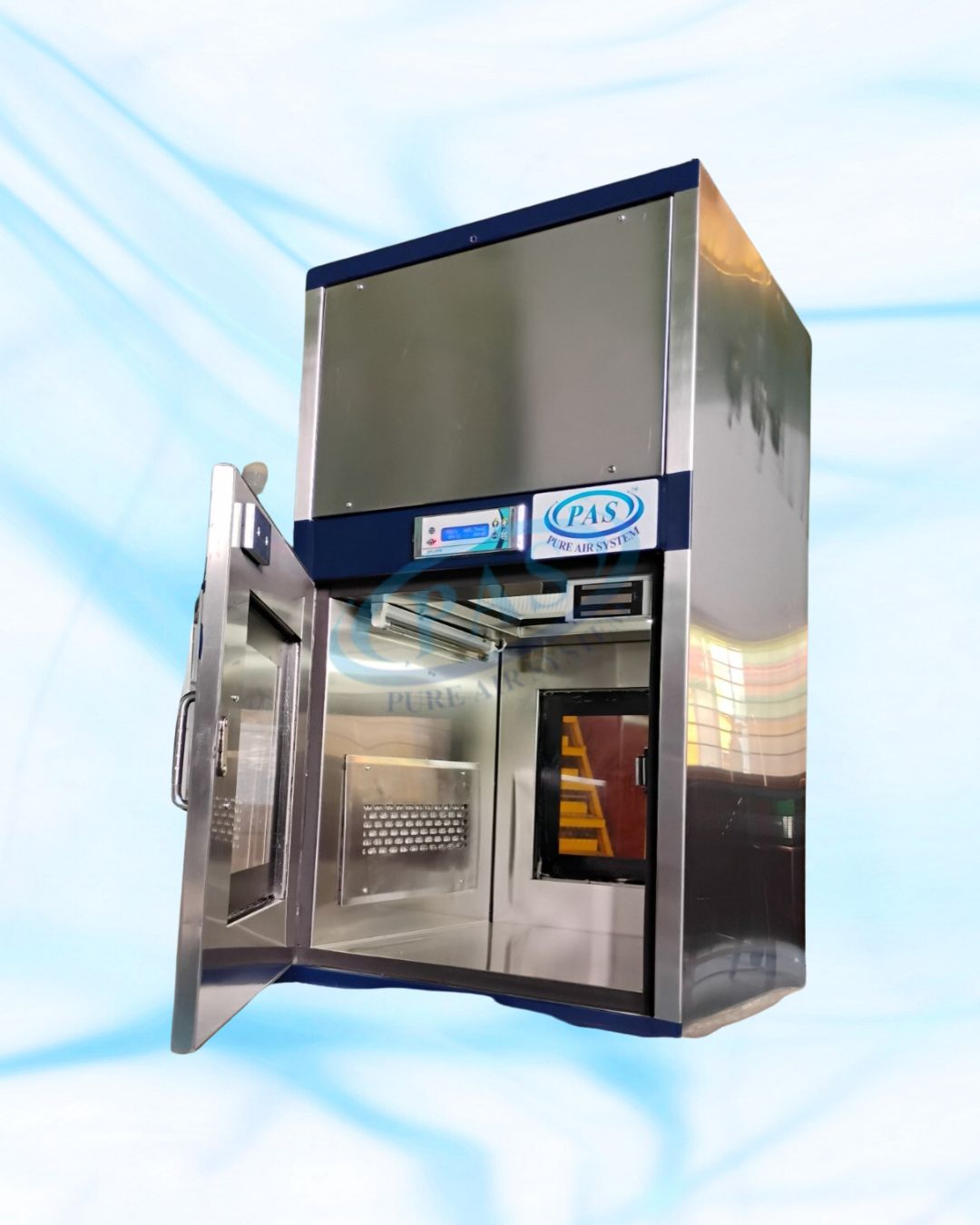

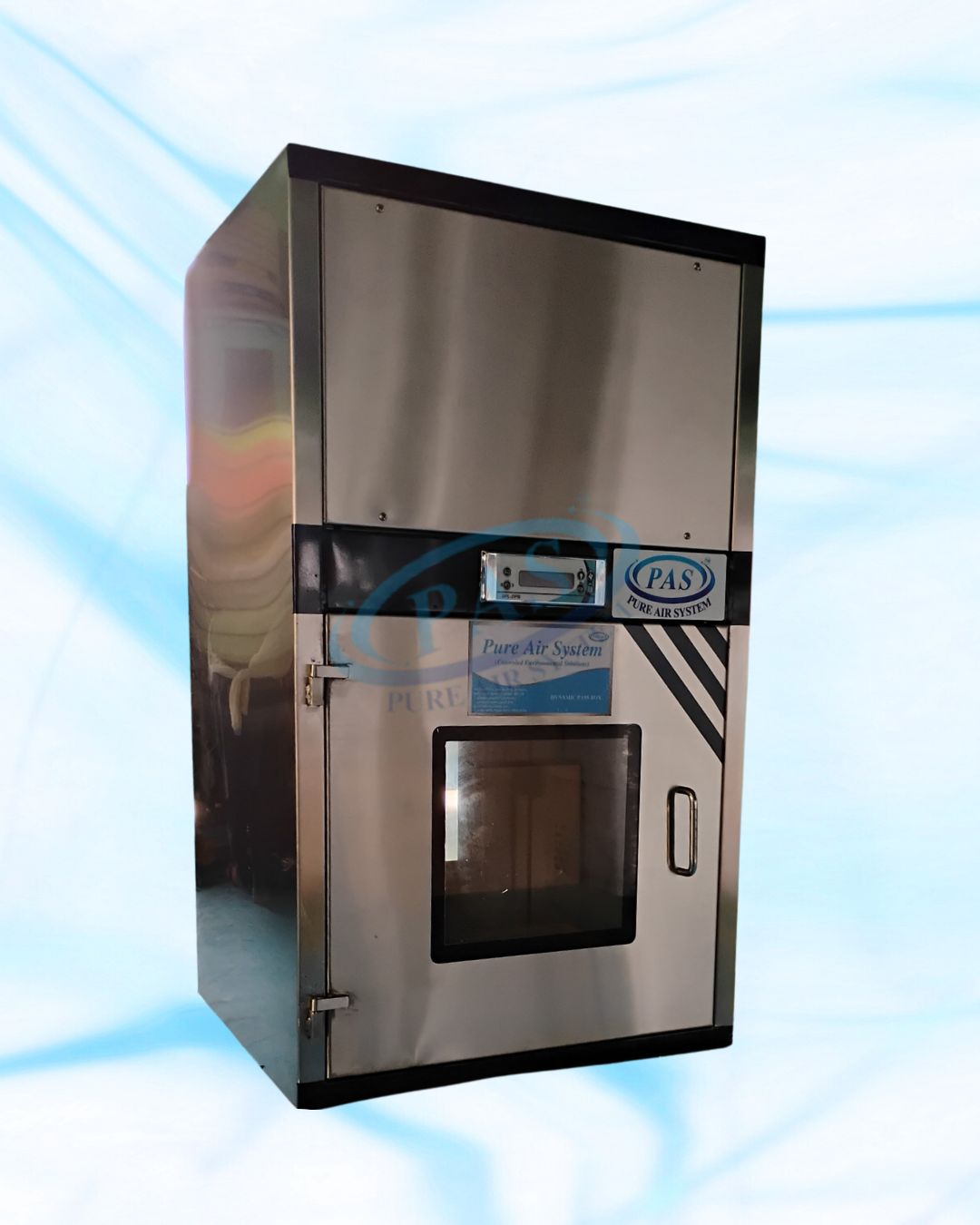

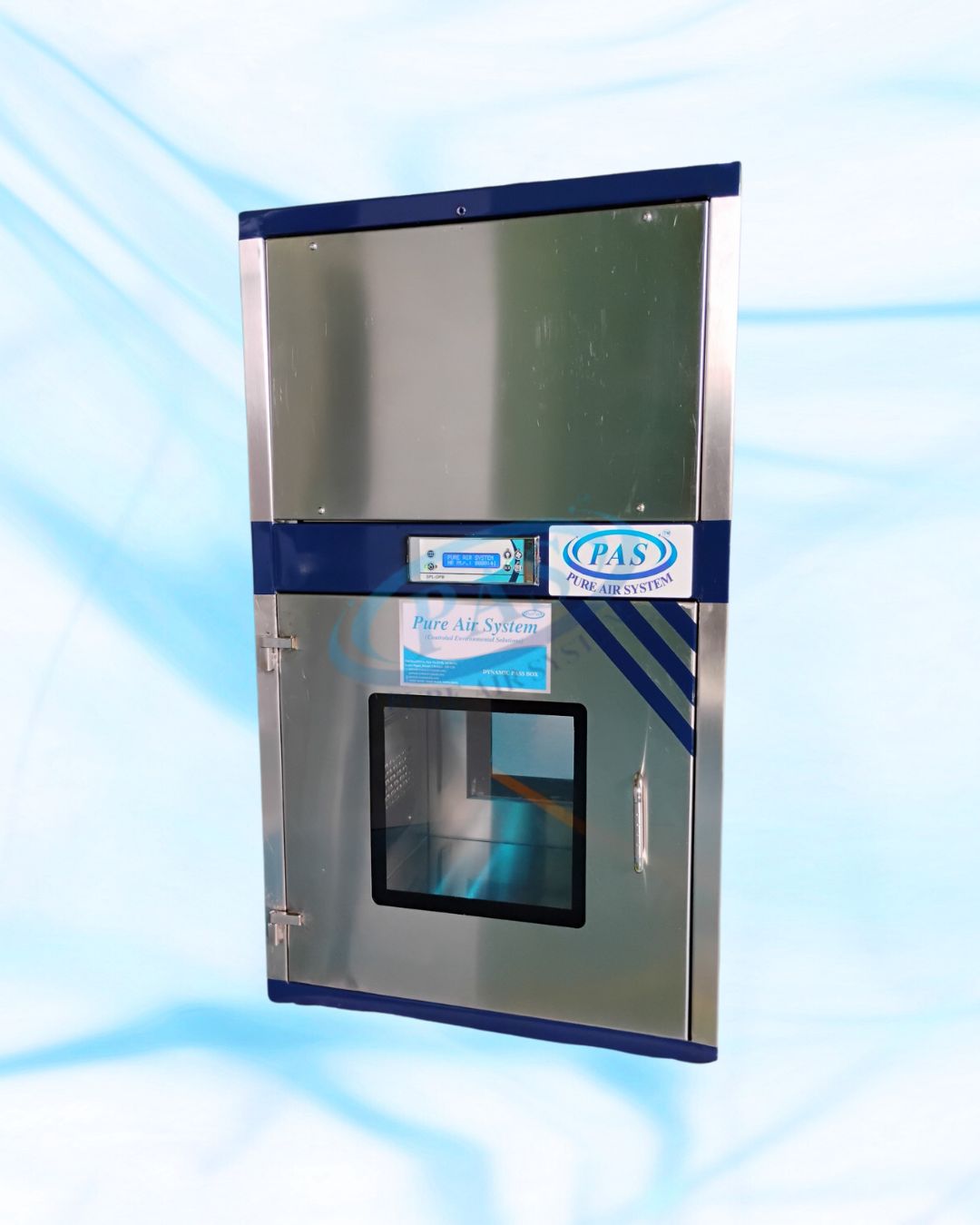

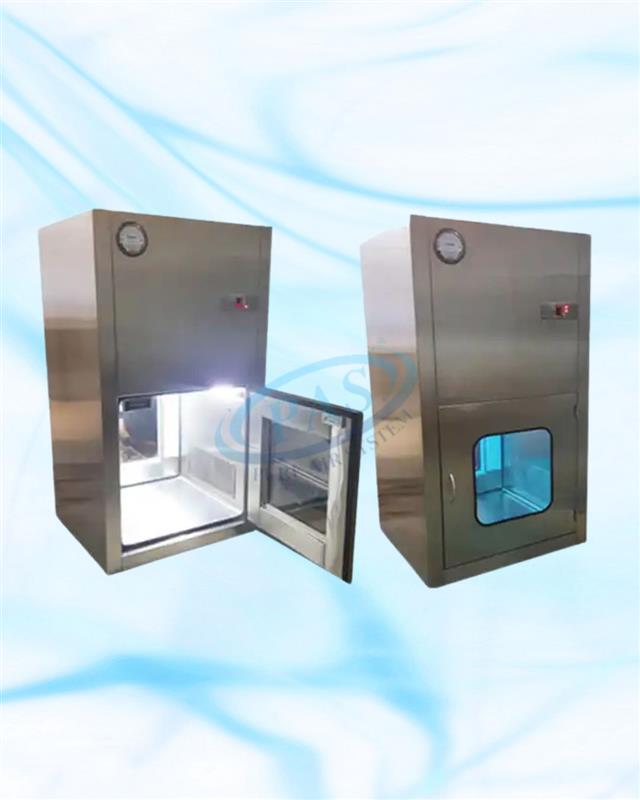

Pure Air India’s dynamic pass boxes are designed to enable items to be transferred between controlled environments while reducing the danger of cross-contamination. These pass boxes keep materials controlled during material interchange. Dynamic Pass boxes are available in Recirculation type and non-circulation type, as well as mechanical interlocking and Electrical interlocking systems.
Are you ready to improve your contamination control measures? Contact us right now to discuss your pass box needs. Our staff is eager to work with you to develop solutions that provide effective transfer procedures and contamination control.
Enquire for more details : [email protected]
| Product | “Pureair” Dynamic Pass Box |
| Air balancing | 100% recirculation, 0 % exhaust |
| Protection | Product & Personnel & Environmental protection |
| Control | Plenum surrounded by Negative Plenum |
| Cleanliness level | ISO class 5 as per ISO 14644-1 |
| Down Flow Velocity | 0.45 ± 0.05mps. or 90 FPM ± 10 FPM |
| Noise level | Less than 65 db on A scale |
| Light Intensity | Minimum 900 lux inside the working area at ambient zero |
| Vibration Level | Minimum. |
| MOC | Main Body – Galvanized Iron with PU coated / Stainless Steel – Satin Finish Working Area – Stainless Steel IS 304 Grade Satin Finish |
| Supply Filter | HEPA Filter having EU 13 rating with suitable size. |
| Efficiency | 99.99% down to 0.3 Microns. |
| Pre Filter | “Pureair” make, EU 4 rating with suitable size. |
| Efficiency | 90% down to 10 Microns. |
| Doors | Double Skin Swing Door with Clear View Panel |
| Door Interlocking | Electro Magnetic Interlocking Arrangement with Sensors |
| Differential Pressure Gauge | Magnehelic Gauge – 01 No. (make: Dwyer, USA) with each unit (To measure differential pressure across the supply HEPA filter). |
| Motor Blower Assembly | Statically & Dynamically balanced with suitable rating and size. (Induction motor with centrifugal blower) A Mounting unique spring suspension system to take care of vibration and noise. |
| Accessories | UV Lamp Interlocking with Door Open & Close Audible/ Visual Alarm for False Door Interlocking On/Off switches for motor blower & CFL lights. (optional) SS Protective Grill for HEPA Filters (Optional) |
