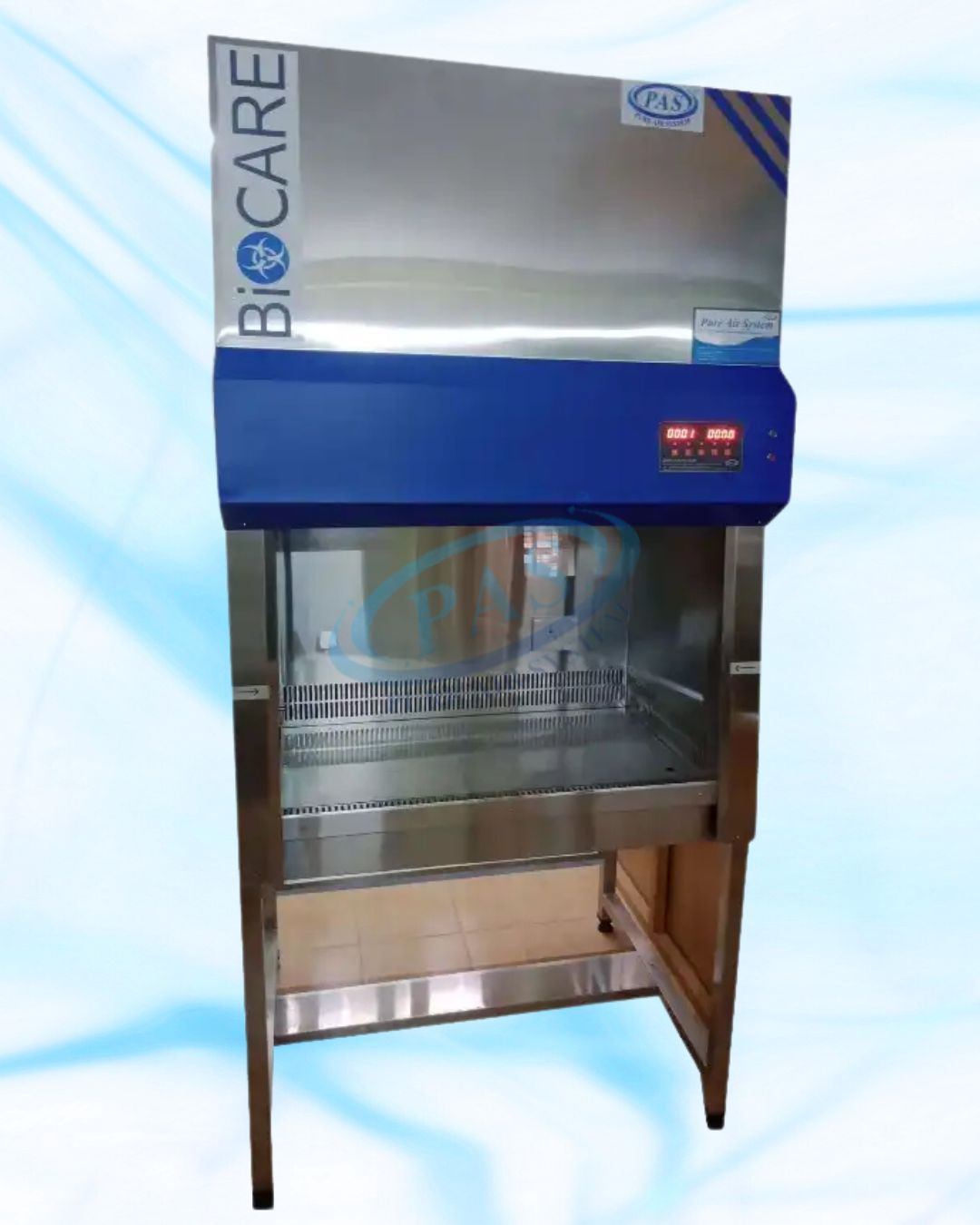

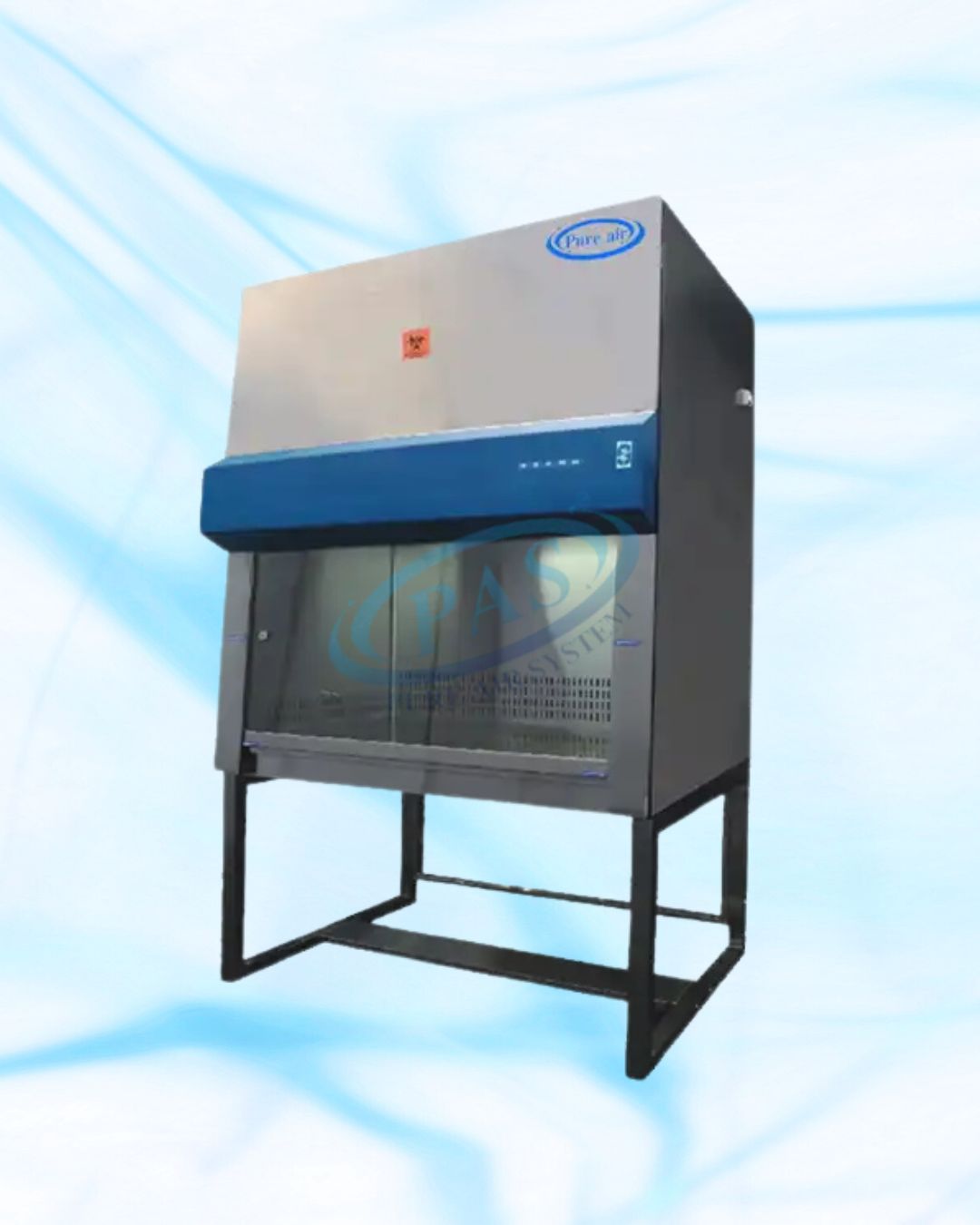

Class II Type A1 Biosafety Cabinet Manufacturers in Chennai
Through the use of an inward airflow pattern, these cabinets safeguard both employees and the environment. Air is pulled from the room, processed through a HEPA filter, and then recirculated into the cabinet. A part of the filtered air is vented outside the cabinet. Class II Type A1 cabinets have an inflow velocity of 75 linear feet per minute (fpm) at the face opening and are ideal for working with low to moderate risk biological agents.
Enquire for more details : [email protected]
Working Area – Stainless Steel IS 304 Grade Satin Finish
| Product | Biosafety Cabinet – Class II- Type A1 |
| Air Balancing | 70% recirculation.30% exhaust |
| Protection | Product & personnel & environmental protection |
| Cleaniliness level | ISO class 5 as per ISO 14644-1 |
| Airflow Intensity | Inflow Velocity Minimum 0.45 m/s ( 90 FPM) at 8” front opening |
| Velocity | Down Velocity 0.30 m/s ( 65 FPM) |
| Noise level | Less than 65 db on A scale |
| Light Intensity | Minimum 900 lux inside the working area at ambient zero |
| MOC | Main Body – Galvanized Iron with PU coated / Stainless Steel – Satin Finish Working Area – Stainless Steel IS 304 Grade Satin Finish |
| Supply Filter | HEPA Filter having EU 13 rating with suitable size. . |
| Efficiency | 99.99% down to 0.3 Microns. |
| Exhaust Filter | HEPA Filter having EU 13 rating with suitable size. |
| Efficiency | 99.99% down to 0.3 Microns. |
| Pre Filter | “Pureair” make, EU 4 rating with suitable size. |
| Efficiency | 90% down to 10 Microns. |
| Noise Level | Less than 70 dB ‘A’. |
| Vibration Level Instrumentation | Minimum. |
| Magnehelic Differential Pressure Gauge | Less than 70 dB ‘A’. |
| Motor Blower Assembly | Statically & Dynamically balanced with suitable rating and size. (Induction motor with centrifugal blower) A Mounting unique spring suspension system to take care of vibration and noise. |
| 3 Pins Switch & Socket | 15 AMPS – 1 set in each unit. |
| Other Switches | On/Off switches for motor blower & CFL lights. |
